Features
- 16-CH isolated digital inputs
- Non-polarity digital input range
- Isolated input voltage up to 24 V
- 5000 Vrms optical isolation
- Jumper configurable for voltage input or dry contact input mode
- 8-CH single-pole double-throw (SPDT form C) relays
- Maximum switching voltage 220 Vdc/250 Vac
- Maximum switching current up to 2 A DC/AC
- Onboard relay driver circuitry
- LED indicators for both input and relay status
- Screw terminals for easy field wirin
- Number of Isolated DI Channels: 16
- Number of Relay Output Channels: 8
- LED Indicators for Input and Output Status: one per channel
- Electronics Characteristics of Isolated DI:
refer to the TB-24P-01's specifications - Electronics Characteristics of Relay Outputs:
refer to the TB-24R-01's specifications - I/O Connector: 50-pin ribbon male
- Operating Temperature: 0 ~ +60˚C
- Storage Temperature: -20 ~ +80˚C
- Relative Humidity: 5 ~ 95%, non-condensing
- Power Requirements: +5V 40 mA max., +12 V 100 mA max.
- Dimensions (W x L x H): 220 x 132 x 22 mm

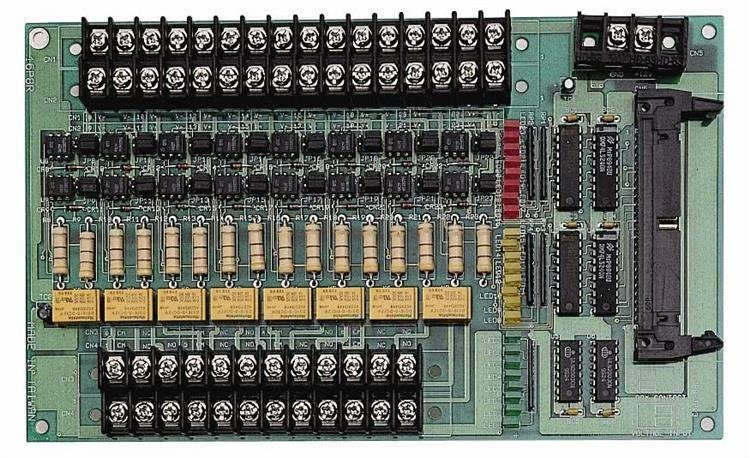

- TB-16P8R/12-01 - Terminal board with 16-CH isolated DI & 8-CH relay outputs
- Mating Cable:
- ACL-10150 - 50-pin flat cable
