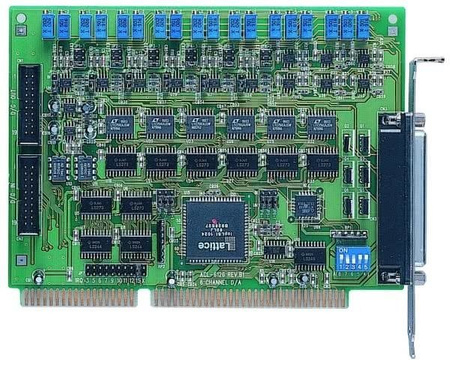

ACL-6126 (End of Life)

Produkt End of Life - zamiennik: A-726

Features

• AT Bus support
• Six multiplying analog output channels
• 12-bit resolution, double buffered D/A converter
• Multiple Output Range:
  Unipolar : 0 ~ +5 V , 0 ~ +10 V
  Bipolar : ± 5 V, ± 10 V
• Current Loop : 4 ~ 20 mA
• All D/A outputs will be 0 V after RESET or POWER-ON
• 16 digital output channels
• 16 digital input channels
• Enhanced IRQ capability from IRQ3 to IRQ15
• Register structure is fully compatible with Advantech's PCL-726

Specifications

• Analog Output( D/A )

• Converter: DAC7541 AJP or equivalent
• Conversion type : monolithic multiplying
• Number of channels: 6 channels
• Resolution: 12-bit, double buffered output
• Output ranges:
  Unipolar: 0 ~ +5 V or 0 ~ +10 V
  Bipolar: ±5 V or ± 10 V
• 4 ~ 20 mA current loop (sink)
• Reference Voltage:
  ± 10 V with external DC or AC reference;
  Internal: -5 V or -10 V
• Current Loop: External +10 V or -10 V max.
• Settling time: 70 microsecond max.
• Linearity: ± 1/2 bit
• Accuracy: ± 0.012% of full scale range
• Voltage driving capability: ± 5 mA (max.)
• Current Loop exciting voltage:
  4 ~ 20 mA (sink): 8 V min., 36 V max. for current loop 4 ~ 20 mA
• Output initial status : 0 V (after RESET or POWER-ON)

• Digital Input (D/I)

• Channel: 16 channels
• Level: TTL compatible
• Input logic low voltage: Min. -0.5 V; Max. 0.8 V
• Input logic high voltage: Min. 2.0 V; Max. 5.0 V
• Input loading current: Max. 0.2 mA at 0.4 V
• Input hysteresis: Typical 0.4 V; Min. 0.2 V

• Digital Output (D/O)

• Channel: 16 channels
• Level: TTL compatible
• Input logic low voltage(Sink):
  Max. 0.5 V at 24 mA
  Max. 0.4V at 12 mA
• Input logic high voltage (Source):
  Min. 2.0 V at 15 mA
  Min. 2.4 V at 3 mA
• Driving Capacity:
  All inputs and outputs are TTL/DTL compatible and outputs will drive standard TTL load (74 series) or LSTTL (74LS) loads
• Input hysteresis: Typical 0.4 V; Min. 0.2 V

• General Specification

• Bus: PC/AT bus
• I/O connectors:
  37-pin D-sub female connector (analog output)
  20-pin ribbon connector (digital I/O)
• Operating temp: 0°C ~ 55°C
• Storage temp : -20°C ~ 80°C
• Humility : 5% ~ 95%, non-condensing
• Power Consumption:
  +5 V: 360 mA typical, 450 mA max.
  +12 V: 60 mA typical, 180 mA max.
  -12 V: 20 mA typical, 90 mA max.
• Dimension: Half-Size 163 mm x 123 mm

Ordering Information

• ACL-6126 - 6-CH 12-bit Analog Output Card

Optional Accessories

• Terminal Board

• DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-rail Mounting (matching cable ACL-10137-1MM)

• ACLD-9137-01 - General Purpose Terminal Board with One 37-pin D-sub Connector (matching cable ACL-10137-1MF)

• Cable

• ACL-10337 - 2 x 20-pin header to 37-pin D-sub PC back panel flat cable

• ACL-10137-1MF - 37-pin D-sub male/female cable, 1 m

• ACL-10137-1MM - 37-pin D-sub male/male cable, 1 m
