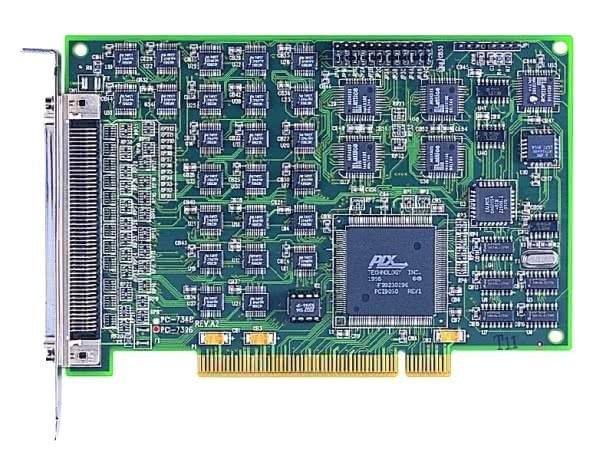

PCI-7348 (End of Life)

Produkcja karty PCI-7348 została zakończona. Producent nie przewidział bezpośredniego zmiennika. Podobne produkty można znaleźć w kategorii nadrzędnej. Jeśl potrzebujesz pomocy w wyborze zamiennika - skontaktuj się z nami bezpośrednio.

Features

• Supports a 32-bit 5 V PCI bus
• 48-CH digital TTL inputs/outputs
• High driving up to 48 mA (sink) and 15 mA (source)
• Emulates 2 industry standard 8255 PPI (mode 0)
• Ports are independently configurable as input or output
• External latch signal available for digital inputs
• Output status read back
• Known power-up states
• Onboard 8254 timer/counter chip
• 1-CH 16-bit event counter for external signal
• 1-CH 32-bit timer for timed interrupt generation
• Change-of-state (COS) interrupt
• Multiple programmable interrupt sources
• Compact, half-size PCB

Specifications

• Digital I/O

• Number of channels: 48 input/output
• Compatibility: 5 V/TTL
• Power-on state: input
• Digital logic levels:
  • Input high voltage: 2-5.25 V
  • Input low voltage: 0-0.8 V
  • Output high voltage: 2.4 V minimum
  • Output low voltage: 0.5 V maximum
• Output driving capacity:
  • Source current: 15 mA
  • Sink current: 48 mA
• Data transfers: programmed I/O

• Interrupt

• Interrupt #0 sources
  • P1C0
  • P1C3
  • 16-bit event counter
  • Change-of-state detection on any bit of PPI 1 & PPI 2
• Interrupt #1 sources:
  • P2C0
  • P2C3
  • 32-bit timer (based on 2 MHz internal clock),
  • Change-of-state detection on any bit of PPI 3 & PPI 4

• General Specifications

• I/O connector : One 100-pin SCSI-II female
• Operating temperature: 0˚C to 60˚C
• Storage temperature: -20˚C to 80˚C
• Relative humidity: 5% to 95%, non-condensing
• Power requirements: +5 V 350 mA typical
• Dimensions (not including connectors): 158 mm x 107 mm

Software Support

• Operating Systems

• Windows 7/Vista/XP/2000/2003 Server
• Linux
• Windows CE (call for availability)

• Recommended Software

• AD-Logger
• VB.NET/VC.NET/VB/VC++/BCB/Delphi
• DAQBench

• Driver Support

• DAQPilot for Windows
• DAQPilot for LabVIEW
• DAQ-MTLB for MATLAB
• PCIS-DASK for Windows
• PCIS-DASK/X for Linux

Ordering Information

• PCI-7348 - 48-CH High-Driving DIO Card

Accessories

• Terminal Boards

• DIN-100S-01 - Terminal Board with One 100-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)

• DIN-96DI-01 - 96-CH Isolated DI Terminal Board with DIN-Rail Mounting (Cables are not included)

• DIN-96DO-01 - 96-CH Isolated DO Terminal Board with DIN-Rail Mounting (Cables are not included)

• Cable

• ACL-102100-1 - 100-pin SCSI-II cable (mating with AMP-787082-9), 1 M
