Features
- Built-in Web Server for IF-THEN-ELSE rule setting
- Built-in IF-THEN-ELSE rule engine for logic operation
- No more programming. Just click and get done!
- Support IO, Counter, Timer, Email operations
- Modbus/TCP Protocol for SCADA Software Seamless Integration
- IEEE 802.3af-compliant Power over Ethernet (PoE)
- 10/100 Base-TX Ethernet
- I/O expansion bus
- Support DI/DO X-Boards: X107, X109, X110, X111
- Support Multi-Function X-Boards: X202, X203, X303, X304, X305, X308, X310, X324
- CPU Module
- CPU: 16-bit CPU
- SRAM: 512 KB
- Flash: 512 KB; Erase unit is one sector (64 K bytes); 100,000 erase/write cycles
- EEPROM: 16 KB
- NVRAM: 31 Bytes (battery backup, data valid up to 10 year)
- OS: MiniOS7
- RTC (Real Time Clock): RTC Provide seconds, minutes, hours, date of week/month; month and year, valid from 1980 to 2079
- 64-bit Hardware Serial Number: Yes
- Watchdog Timers: Yes (0.8 second)
- Communication Ports
- Ethernet: RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
- COM 1: RS-232 (TxD, RxD, RTS, CTS, GND), non-isolated, Speed: 115200 bps max.
- COM 2: RS-485 (D2+, D2-), self-tuner ASIC inside, non-isolated, Speed: 115200 bps max.
- LED Indicators
- System LED: Yes
- LED Display: -
- Special Indicator: PoE LED
- Hardware Expansion
- I/O Expansion Bus: Yes, 1
- Mechanical
- Dimensions (W x H x D): 72 x 123 x 35 mm
- Installation: DIN-Rail or Wall Mounting
- Environment
- Operating Temperature: -25 ~ +75 °C
- Storage Temperature: -30 ~ +80 °C
- Ambient Relative Humidity: 10 ~ 90% RH, non-condensing
- Power
- Protection: Power reverse polarity protection
- Frame Ground: Yes (for ESD Protection)
- Input Range: +12 ~ +48 Vdc
- Power over Ethernet (PoE): IEEE 802.3af Class 1
- Power Consumption: 2.0 W
- Functions
- Rule Configuration Website: Access Web server on WISE controllers to edit and upload logic rules through web browser.
- 36 IF-THEN-ELSE Logic Rules:
3 IF conditions with AND or OR operators
3 THEN actions
3 ELSE actions - 48 Internal Registers: Hold temporary variables and read/write data via Modbus/TCP address.
- 12 Timers: Delay / Timing functions.
- 12 Schedules: Setup pre-scheduled routine tasks.
- 12 Emails: Send Email messages to pre-set Email receivers.
- 12 CGI Commands: Send pre-set CGI commands.
- 12 Recipes: Set up THEN/ELSE action groups.
- 8 P2P remote modules: Set up the connection information for the remote WISE modules.
- Modbus/TCP Protocol: Real time control and monitoring I/O channels and system status of controllers via SCADA software.
- IF Conditions
- DI Channel: ON, OFF, ON to OFF, OFF to ON Change
- AI Channel: =, >, <, >=, <= (value)
- Internal Register: =, >, <, >=, <= (value)
- DI Counter: =, >, <, >=, <= (value), Change
- DO Counter: =, >, <, >=, <= (value), Change
- Timer: Timeout, Not Timeout
- Schedule: In Range, Out of Range
- P2P: DI, AI, DI counter, DO counter, IR
- Rule Status: Enable, Disable
- THEN / ELSE Actions
- DO Channel: ON, OFF, Pulse Output
- AO Channel: Change the value
- Internal Register: Change the value
- DI Counter: Reset
- DO Counter: Reset
- Timer: Start, Stop
- Schedule: Start, Stop
- Email: Send
- CGI Commands: Send
- Recipe: Execute
- P2P: DO(On/Off), AO, IR
- Rule Status: Enable, Disable

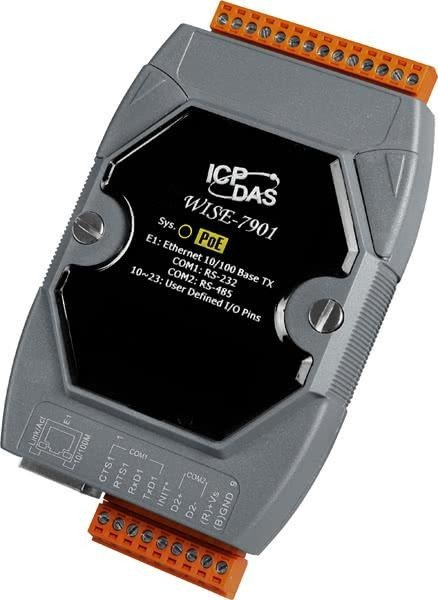

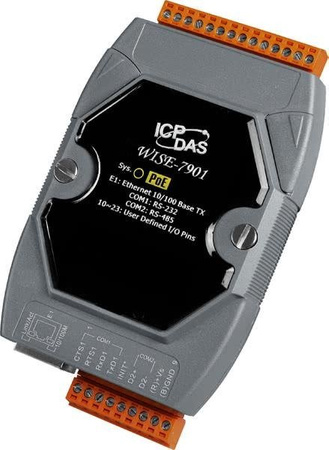

- WISE-7901 – User-defined I/O Expansion PoE Module (RoHS)
