Features
- Supports FRnet & TCP/IP (TCP, UDP, IP, ICMP, ARP) networks
- Re-loadable OS, software, application programs
- Remote Configuration / Maintenance
- Diagnostics
- 64-bit hardware unique serial number inside
- COM driver support interrupt & 1K QUEUE Input & Output buffer
- Built-in self-tuner ASIC controller on RS-485 port
- Program download port: COM1 or Ethernet Port
- CPU
- CPU: 80188, 40 MHz or compatible
- SRAM: 512 K bytes
- Flash Memory: 512 K bytes;
Erase unit is one sector (64Kb), 100,000 erase/write cycles - EEPROM: 2 K Bytes (8 blocks, each block contains 256 bytes);
Data retention > 100 years; 1,000,000 erase/write cycle - NVRAM: 31 Bytes (battery backup, data valid up to 10 year)
- RTC (Real Time Clock): Yes; Displays seconds, minutes, hours, date of the month, month and year from 1980 to 2079
- 64-bit Hardware Serial Number: Yes
- Built-in Watchdog Timer: Yes (0.8 seconds)
- Communication Interface
- COM1: RS-232 (CTS, RTS, RXD, TXD, GND); Non-isolation, download port
- COM2: RS-485 (D2+, D2-); self-tuner ASIC inside; Non-isolation
- Ethernet Port: 10 BASE-T, RJ-45 port, NE2000 compatible Ethernet Controller
- FRnet Port:
• Communication speed : 250 Kbps
• Scan time : 128 input / 128 output points @ 2.88 mS
• Communication distance : Max. 400 m
• Cable: CPEV 0.9 (2P Twisted-pair wire)
• Distributed I/O modules:
– Max. 8 SA modules, FR-2053T (16 DI)
– Max. 8 RA modules, FR-2057T (16 DO)
• Each module of FR-2053T/FR-2057T module is one group. - COM Port Formats
- Baud rate: 115200 bps max.
- Data bit: 7, 8
- Parity: Even, Odd, None
- Stop bit: 1
- LED Display
- 5-Digit 7 Segment LED Display: Yes
- System LED Indicator: Yes
- Mechanical
- Dimensions (W x H x D): 123 x 72 x 33 mm
- Installation: DIN-Rail, Stack Mounting
- Operating Environment
- Operating Temperature: -25 ~ +75°C
- Storage Temperature: -40 ~ +80°C
- Humidity:
Operating: 10 ~ 90% RH, non-condensing
Storage: 5 ~ 95% RH, non-condensing - Power
- Protection: Power reverse polarity protection
- Required Supply Voltage: +10 ~ +30 Vdc (non-regulated)
- Power consumption: 3 W

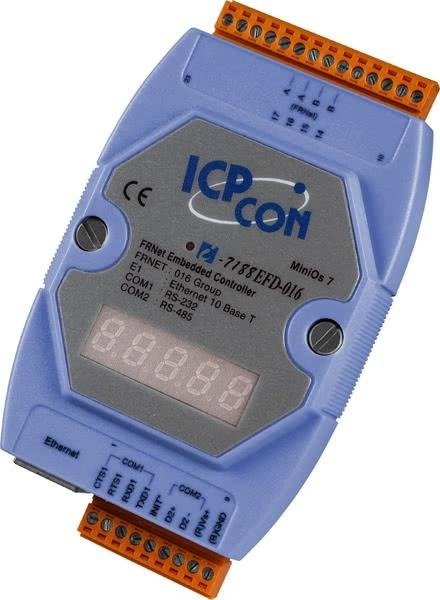

- I-7188EFD-016 CR – 10M Ethernet FRnet palm-size PAC, 80188-40 CPU, MiniOS7, 512K SRAM, LED display (RoHS)
