Features

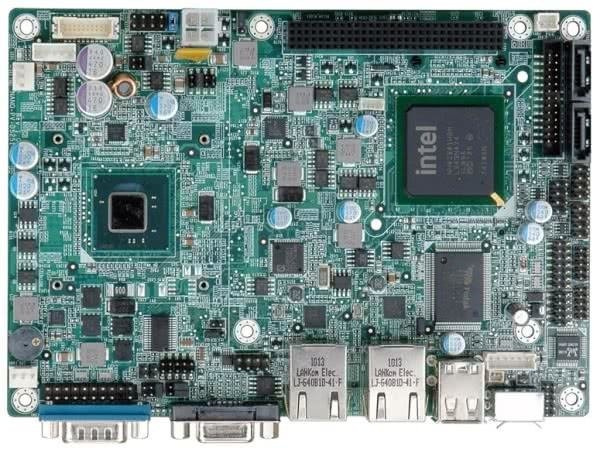

- EPIC SBC with Intel Atom D525 processor
- DDR3 800 MHz SDRAM supported (system max. 2 GB)
- Support VGA and 18-bit single-channel LVDS with Dual display
- Support PCI-104, PCIe Mini card slot
- Support five COM, eight USB, two SATA 3Gb/s and one CF Type II socket
- TPM V1.2 hardware security function support by TPM module
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: Intel Atom D525 dual-core processor 1.8 GHz/1 MB L2 cache
- Chipset: Intel ICH8M
- BIOS: UEFI BIOS
- Memory: One 204-pin 800 MHz DDR3 SDRAM SO-DIMM supported (System max. 2 GB)
- Graphic: GMA 3150
Graphic core speed 400 MHz - Display:
Analog CRT up to 2048x1536
Support for CRT hot-plug
18-bit single-channel LVDS, resolution support up to WXGA 1366x768 - Super IO: Fintek F81865
- LAN: Dual PCIe GbE by Realtek RT8111E,
LAN1 with ASF2.0 support - I/O Interface:
4 x RS-232
1 x RS-232/422/485 (COM3) with Auto Flow control
1 x LPT
8 x USB 2.0
2 x KB/MS
1 x CF Type II socket
2 x SATA 3 Gb/s - Audio: Realtek ALC888 HD codec
- Expansion:
1 x PCI-104 slot
1 x PCIe Mini card slot (PCIe + USB + SATA signal) support IEI mini DOM - SMBus: 1 x 4-pin wafer connetor
- TPM: 1 x 20-pin LPC pin header
- Watchdog Timer: Software programmable supports 1~255 sec. system reset by Super I/O
- Digital I/O: 8-bit digital I/O, 4-bit input / 4-bit ouput
- Fan Connector:
1 x 3-pin CPU fan,
1 x 3-pin system fan - Power Supply: 12 V only, AT/ATX support
- Power Consumption:
2.21 A @ 12 V (Intel Atom D525 with 2 GB 1066 MHz DDR3) - Temperature:
-20 ~ +60°C with free air,
-20 ~ +70°C with force air - Humidity: Operation: 5% ~ 95% non-condensing
- Weight: GW: 670 g / NW: 350 g
- NANO-PV-D5251-R10 - EPIC with Intel Atom D525 1.8 GHz, DDR3, VGA/LVDS, Dual GbE, USB 2.0, CF II, audio and SATA 3 Gb/s, RoHS
- 32200-015100-RS - LPT cable
- 32000-062800-RS - SATA cable
- 32205-000300-100-RS - RS-232/422/485 cable
- 19FTS00032100-000001-RS - CPU fan
- TPM-IN01-R11 - 20-Pin Infineon TPM module, software management tool, firmware V3.17
