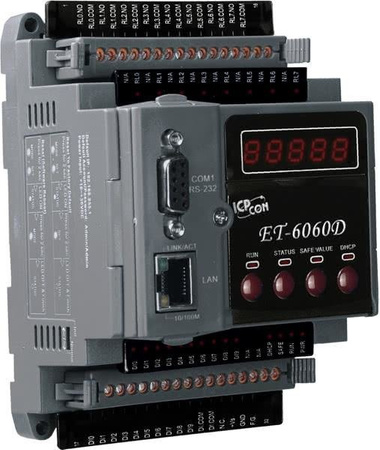

ET-6060D

Moduł Modbus/TCP – 10 izolowanych wejść cyfrowych (Wet: Sink/Source) i 8 wyjść przekaźników mocy 3.0 A/250 Vac

Specifications

• CPU


• CPU: 80186, 80 MHz
• SRAM: 512 KB
• Flash Memory: 512 KB
• EEPROM: 16 KB
• Dual Watchdog: Yes


• Communication


• Serial Port: RS-232 (TXD, RXD, GND) (115200 bps Max.)
• Ethernet Port: 10 / 100 Base TX (With Link, Activity LED Indicator)


• Small Man Machine Interface


• 7 Segment LED Display: 5 Digits
• System LED Indicator: 4
• Push Button: 4


• Digital Input


• Input Channels: 10 (Sink/Source)
• LED Indicator: Yes
• Input Type: Isolation, Two Common for All Digital Inputs
• On Voltage Level: +10 ~ +50 V
• Off Voltage Level: +3 V max
• Input Impedance: 10 KOhms, 0.66 W
• Counters:
  • Channels: 10
  • Max. Input Frequency: 100 Hz
  • Min. Pulse Width: 5 ms
• Intra-module Isolation, Field to Logic: 3750 Vrms


• Digital Output


• Output Channels: 8
• LED Indicator: Yes
• Output Type: Power Relay, Form A (Normal Open)
• Operating Voltage Range:
  • 5 ~ 240 Vac (47 ~ 63 Hz)
  • 5 ~ 24 Vdc
• Relay Contact Voltage Range:
  • 0 ~ 250 Vac (47 ~ 63 Hz)
  • 0 ~ 28 Vdc
• Max. Load Current: 3.0 A/Channel
• Max. Operate Time: 15 ms Max.
• Max. Release Time: 3 ms Max.
• Insulation Resistance: Min. 1000 MOhms, at 500 Vdc
• Dielectric Strength:
  • Between Open Contacts: 750 Vac 50/60Hz (at 1 Minute)
  • Between Coil and Contacts: 4000 Vac 50/60 Hz (at 1 Minute)
• Surge Strength: 10 000 V (at 1.2*50 us)
• Relay Life:
  • Mechanical: 10 million operations at no Load Condition
  • Electrical: 100 000, 28 Vdc@5 A min. , Resistive


• 3 Way Isolation


• Ethernet: 1500 Vrms
• I/O: 3750 Vrms
• Power: 1000 Vdc


• Mounting


• Din Rail Mount: Yes
• Wall Mount: Yes


• Power Requirements


• Power Input: +10 ~ +30 Vdc
• Power Consumption: 4.8 W


• Environment


• Operating Temperature: -25 ~ +75°C
• Storage Temperature: -30 ~ +75°C
• Relative Humidity: 10 ~ 95% RH, non-condensing
• Certification: CE, FCC
• Dimensions (W x D x H): 90 x 111 x 70 mm

Ordering Information

• ET-6060D – CR 8-channel Digital Output and 10-channel Digital Input (RoHS)
