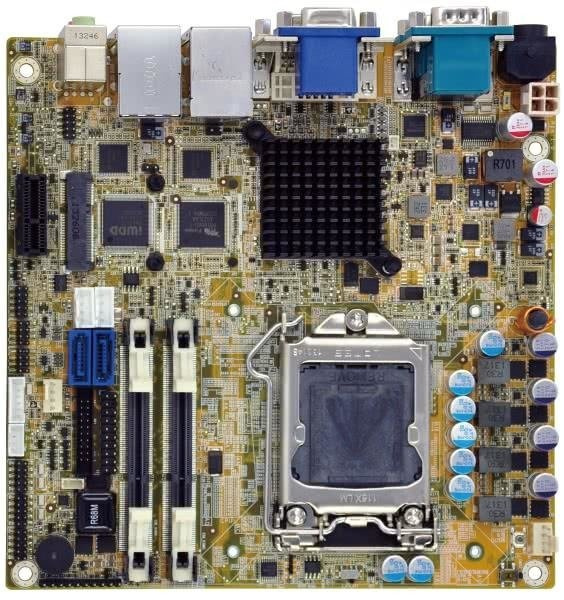

Name: KINO-DH810
Brand: IEI Integration Corp.

Features

LGA1150 Intel 4th generation Core i7/i5/i3/Pentium/Celeron processor supported
DDR3 1066/1333/1600 MHz dual channel SDRAM
3D micro-architecture enhancements supports for DX11.1, OCL 1.2 and OGL3.2
Rich media acceleration for hardware decode and encode acceleration
High speed I/O interface for USB 3.0, SATA III and mSATA supported
IEI Jumper-less function

Specifications

CPU: LGA1150 Intel 4th generation Core i7/i5/i3/Pentium/Celeron processor supported
System Chipset: Intel H81
Memory: Two 240-pin 1066/1333/1600 MHz dual-channel DDR3 SRAM Unbuffered SO-DIMM
supported (system max. 16 GB)
BIOS: UEFI BIOS
Ethernet: Dual GbE
Intel I211-AT PCIe controller
Graphic Engine:
• Support for DX11.1 and OpenGL3.2
• Full MPEG2, VC1, AVC Decode
Display Output:
• VGA (up to 1920x1200 @ 60 Hz)
• DVI-D (up to 2560x1600 @ 60 Hz)
• iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
Super I/O: Fintek F81866
Audio: Realtek ALC662 HD codec
I/O Interfaces:
• 1 x 6-pin wafer for PS/2 KB/MS
• 1 x RS-422/485
• 5 x RS-232
• 2 x SATA 6 GB/s
• 2 x USB 3.0 (2 x Rear I/O)
• 6 x USB 2.0 (2 x Rear I/O, 4 x pin header)
Front Panel:
1 x Front Panel (Power LED, HDD LED, Speaker, Power Button, Reset Button)
LAN LED:
2 x 2 Pin for LAN1 Link LED, LAN2 Link LED
SMBus: 1 x 4-pin wafer
TPM: 2 x 10-pin pinheder
Expansion:
• 1 x PCIe x1 slot
• 1 x full size mini PCIe card slot (support mSATA)
Watchdog Timer: Software Programmable support 1~255 sec. system reset
Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)
FAN Connector:
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
Power Supply:
• 12 V only DC input
• 1 x external DIN 4pin DC jack
• 1 x internal 2x2-pin power connector
• Support AT/ATX mode
Power Consumption: +12 V@6.03 A
(Intel Core i7-4770K 3.90 GHz CPU with two 1333 MHz 4 GB DDR3 memory)
Operating Temperature: -20 ~ +60°C
Operating Humidity: 5 ~ 95%, non-condensing
Diemension: 170 x 170 mm
Weight: GW: 900 g/NW: 450 g

Ordering Information

KINO-DH810-R10 - Mini-ITX SBC with IntelLGA1150 Intel Core i7/i5/i3, Celeron CPU, DDR3, DVI-D, VGA, DP, Dual Intel PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
