Features
- Built-in VGA Port
- I/O Module Hot Swap Ability (For High Profile I-87K Modules Only)
- Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
- Built-In 63 MB Flash Disk
- Dual Watchdog Timer
- Dual Battery-Backup SRAM (512KB)
- Dual Ethernet Ports
- Redundant Power Input
- Ventilated Housing Design Allows Operation Between -25℃ ~ +75℃
- Windows CE.Net 5.0
- Remote Maintenance via FTP Server and VCEP Software
- Built-In OPC Server (NAPOPC_CE5)
- Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
- Upgrading applications from WinCon to WinPAC Just Copy and Play
- System Software
- OS: Windows CE 5.0
- .Net Compact Framework: 2.0
- Embedded Service: FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
- SDK Provided: DLL for eVC, DLL for Visual Studio.Net 2003/2005/2008
- Development Software
- InduSoft Software: InduSoft Web Studio v6.1
- ISaGRAF Software: ISaGRAF Version 3 : IEC 61131-3 standard.
Languages: LD, ST, FBD, SFC, IL & FC - Max. Code Size: Accepts max. 1 MB ISaGRAF code size (Appli.x8m must < 1 MB)
- CPU Module
- CPU: PXA270 or compatible (32-bit and 520 MHz)
- SDRAM: 128 MB
- Dual Battery Backup SRAM: 512 Kbytes (for 5 years data retain)
- Flash: 128 MB (64 MB for OS image, 63 MB for built-in Flash disk, 1 MB for registry)
- EEPROM: 16 Kbytes; Data Retention: 40 years; 1,000,000 erase/write cycles
- microSD: with one 1 GB microSD card (can support 16 GB microSD card)
- RTC (real time clock): Year-2000 compliance; seconds, minutes, hours,
date of the month; month, year, valid up from 1980 to 2079 - 64-bit Hardware Serial Number: Yes
- Dual Watchdog Timer: Yes
- Programmable LED Indicator: 1
- Rotary Switch: Yes (0 ~ 9)
- DIP Switch: -
- VGA & Communication Ports
- VGA: resolution: 1024 x 768, 800 x 600, 640 x 480; with one extra GPU
- Ethernet: RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, LED indicators)
- USB 1.1 (host): 2 ports
- COM 0: Internal communication with I-87K modules in slots
- COM 1: RS-232 (to update firmware) (RXD, TXD and GND); Non-isolation
- COM 2: RS-485 (D2+, D2-); self-tuner ASIC inside; Isolation: 2500 Vdc
- I/O Expansion Slots
- Slot Number: 1 slot (for High Profile I-8K and I-87K modules only)
- Hot Plug: for High Profile I-87K modules only
- Mechanical
- Dimensions (W x L x H): 95 mm x 132 mm x 111 mm
- Installation: DIN-Rail or Wall Mounting
- Environmental
- Operating Temperature: -25 ~ +75 °C
- Storage Temperature: -30 ~ +80 °C
- Ambient Relative Humidity: 10% ~ 90% RH, non-condensing
- Power
- Input Range: +10 ~ +30 Vdc
- Isolation: 1 kV
- Redundant Power Inputs: Yes, with one power relay (1 A @ 24 Vdc) for alarm
- Capacity:
1.0 A, 5 V supply to CPU and backplane;
0.6 A, 5 V supply to I/O expansion slots, total 8 W - Power Consumption: 7.3 W (0.3 A @ 24 Vdc)

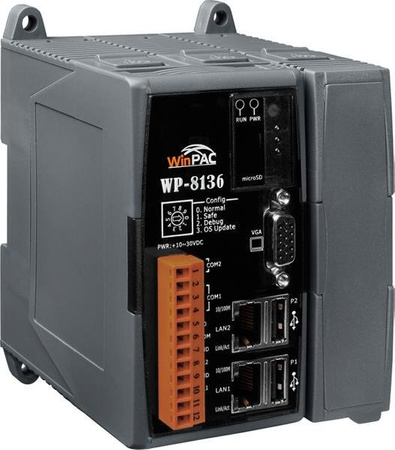

- WP-8136-EN – InduSoft and ISaGRAF based WinPAC-8000 with 1 I/O slot (English version of OS)
Parametry techniczne:
| Seria: | WP-8000 |
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
